Product Introduction

This equipment is mainly used for welding nickel sheets in cylindrical lithium batteries

Manual spot welding of gantry (foot step spot welding machine)：

 Different requirements result in different power configurations, which can be configured with Miaki power supply, AC power supply, DC power supply, transistor power supply, and so on.

 1、Applicable scope:

This device is mainly used for welding batteries in cylindrical/polymer battery combinations with nickel plated steel strips or nickel strips.

Such as the series parallel combination of 18650/26650 battery cells for power batteries, multi parallel multi series combination, electric tool batteries, torsion car batteries (6 groups spot welded with 1 mold), energy storage battery packs, 18650 battery packs, 26650 battery packs, 32650 battery packs, electric bicycle batteries, solar street light battery packs, ternary lithium batteries, digital lithium batteries, lithium iron phosphate batteries, etc.

 2、Product features:

Microcomputer control, large LCD screen display, graphical display of current working status, Chinese annotations

Digital setting of welding parameters, clear and easy keyboard operation, convenient and fast

Welding voltage locking technology to prevent network voltage fluctuations from affecting welding current

Adjustable welding pulse width, low welding spatter, and no discoloration of welding points

Can achieve single pulse, double pulse, and multi pulse welding

Can store 99 welding specifications

Equipped with two current monitoring and comparison functions, with sound and light alarms for abnormal current, effectively preventing the occurrence of virtual welding and false welding

Equipped with fault self diagnosis function, displaying corresponding fault points for easy maintenance

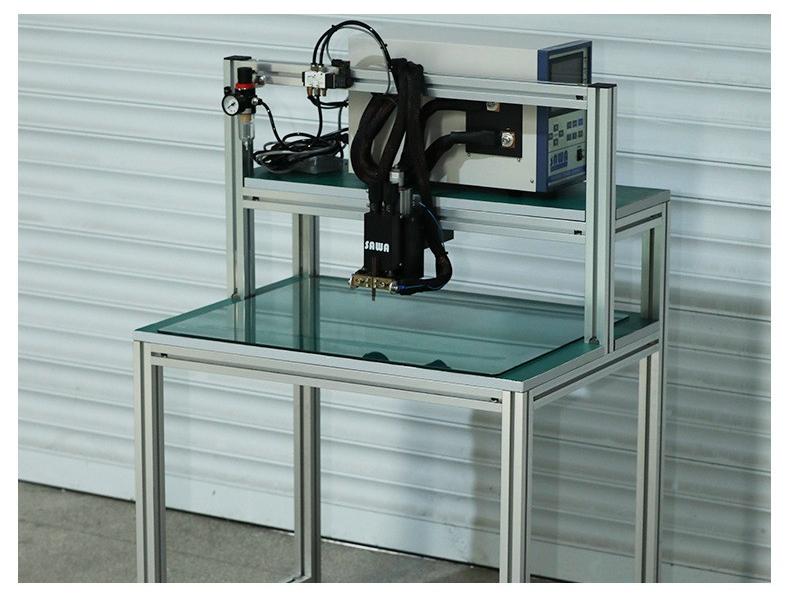

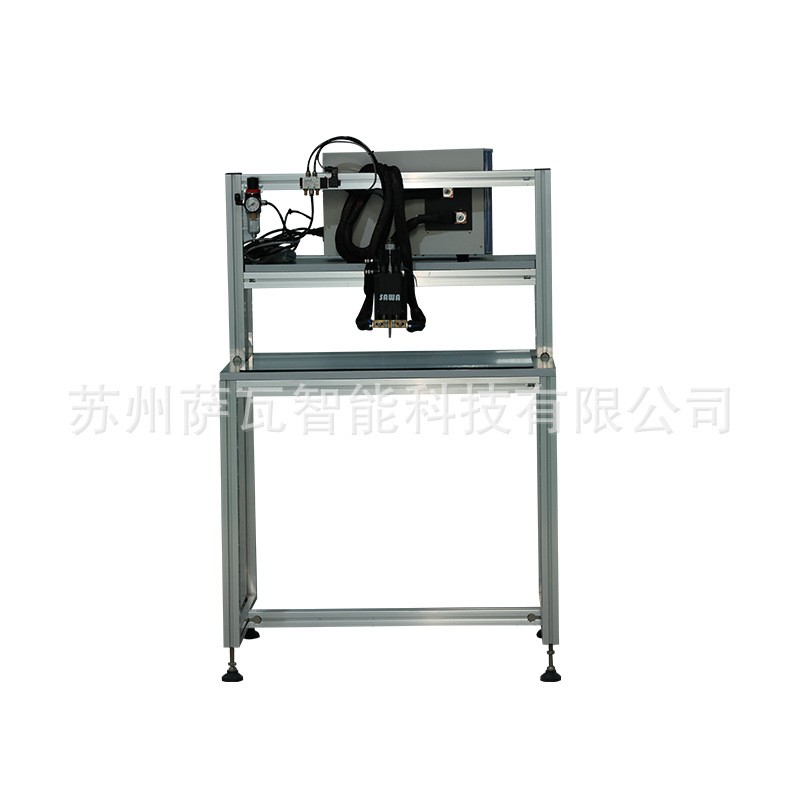

        3、Overall appearance structure diagram

technical parameter

Output maximum short-circuit current
